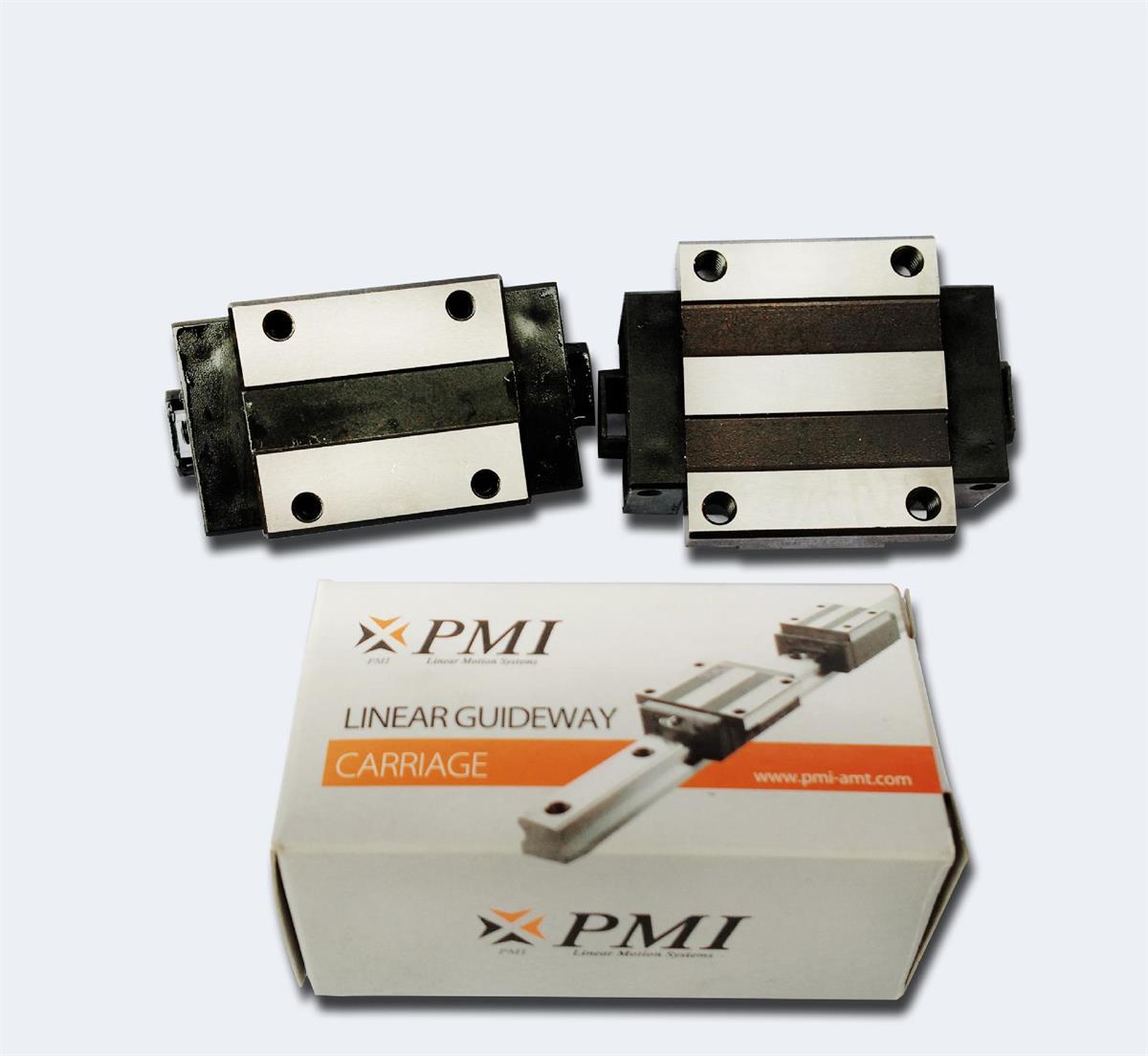

1. 直線導軌的基本結構

1. Basic structure of linear guide rail

直線導軌通常由導軌基座、導軌滑塊和滑塊密封件組成。導軌基座是導軌的固定部分，通常與設備的機架或殼體相連。導軌滑塊是導軌的運動部分，可以在導軌上滑動，同時也可以承載運動部件的重量。滑塊密封件主要用于防止塵埃和污垢進入滑塊內部，從而保證導軌的精度和使用壽命。

A linear guide rail usually consists of a guide rail base, a guide rail slider, and a slider seal. The guide rail base is the fixed part of the guide rail, usually connected to the frame or shell of the equipment. The guide rail slider is the moving part of the guide rail, which can slide on the guide rail and also bear the weight of the moving parts. The slider seal is mainly used to prevent dust and dirt from entering the interior of the slider, thereby ensuring the accuracy and service life of the guide rail.

2. 直線導軌的特點

2. Characteristics of linear guide rails

（1）高精度：直線導軌的制造精度非常高，可以達到微米級，因此能夠保證運動部件的高精度定位和運動軌跡的準確性。

(1) High precision: The manufacturing accuracy of linear guides is very high, reaching the micrometer level, thus ensuring the high-precision positioning of moving parts and the accuracy of motion trajectories.

（2）高剛度：直線導軌的設計剛度非常高，可以有效抵抗外部載荷對運動部件的影響，保證設備的加工精度和穩定性。

(2) High stiffness: The design stiffness of linear guides is very high, which can effectively resist the influence of external loads on moving parts, ensuring the machining accuracy and stability of the equipment.

（3）高可靠性：直線導軌的潤滑系統設計，可以保證長期的潤滑效果，從而保證設備的高可靠性。

(3) High reliability: The lubrication system design of the linear guide rail is advanced, which can ensure long-term lubrication effect, thereby ensuring high reliability of the equipment.

（4）易于維護：直線導軌的設計使得其易于拆卸和安裝，同時也可以方便地進行潤滑和維護，從而降低了設備的維護成本。

(4) Easy to maintain: The design of the linear guide rail makes it easy to disassemble and install, while also facilitating lubrication and maintenance, thereby reducing the maintenance cost of the equipment.

3. 直線導軌的應用

3. Application of linear guide rails

直線導軌被廣泛應用于各種機械設備中，如數控機床、塑料機、壓機等。其主要作用是引導運動部件進行直線運動，從而保證設備的加工精度和穩定性。

Linear guide rails are widely used in various mechanical equipment, such as CNC machine tools, plastic machines, presses, etc. Its main function is to guide the moving parts to move in a straight line, thereby ensuring the machining accuracy and stability of the equipment.

二、滾珠絲杠

2、 Ball screw

滾珠絲杠是機械設計中另一種常用的導向結構，其作用是將旋轉運動轉化為直線運動，同時也可以將扭矩轉化為推力。下面將詳細介紹滾珠絲杠的基本結構、特點以及應用。

Ball screw is another commonly used guiding structure in mechanical design, which converts rotational motion into linear motion and can also convert torque into thrust. Below, we will provide a detailed introduction to the basic structure, characteristics, and applications of ball screws.

1. 滾珠絲杠的基本結構

1. Basic structure of ball screw

滾珠絲杠通常由絲杠軸、滾珠、滾珠軌道和端蓋組成。絲杠軸是滾珠絲杠的主體部分，滾珠在絲杠軸上滾動。滾珠軌道是滾珠的承載軌道，可以引導滾珠進行循環滾動。端蓋是滾珠絲杠的固定部分，通常與設備機架或殼體相連。

Ball screws typically consist of a screw shaft, balls, ball tracks, and end caps. The screw shaft is the main part of the ball screw, and the ball rolls on the screw shaft. The ball track is the load-bearing track of the ball, which can guide the ball to rotate in a loop. The end cover is the fixed part of the ball screw, usually connected to the equipment frame or housing.

2. 滾珠絲杠的特點

2. Characteristics of ball screw

（1）率：滾珠絲杠的運動效率非常高，可以將旋轉運動轉化為直線運動的效率達到90%以上。

(1) High efficiency: The motion efficiency of the ball screw is very high, and it can convert rotary motion into linear motion with an efficiency of over 90%.

（2）高精度：滾珠絲杠的制造精度非常高，可以達到微米級，因此能夠保證運動部件的高精度定位和運動軌跡的準確性。

(2) High precision: The manufacturing accuracy of ball screws is very high, reaching the micrometer level, thus ensuring the high-precision positioning of moving parts and the accuracy of motion trajectories.

（3）高剛度：滾珠絲杠的設計剛度非常高，可以有效抵抗外部載荷對運動部件的影響，保證設備的加工精度和穩定性。

(3) High stiffness: The design stiffness of the ball screw is very high, which can effectively resist the influence of external loads on moving parts, ensuring the machining accuracy and stability of the equipment.

（4）低摩擦：滾珠絲杠的滾動摩擦阻力小，因此其運動平穩、無噪音，同時也可以減少設備的能耗和維護成本。

(4) Low friction: The rolling friction resistance of the ball screw is small, so its movement is smooth and noiseless, while also reducing equipment energy consumption and maintenance costs.

3. 滾珠絲杠的應用

3. Application of ball screw

滾珠絲杠被廣泛應用于各種機械設備中，如數控機床、塑料機、壓機等。其主要作用是引導運動部件進行直線運動，從而保證設備的加工精度和穩定性。同時，滾珠絲杠也可以用于傳遞扭矩和推力，如用于驅動液壓缸或氣壓缸等執行機構。

Ball screws are widely used in various mechanical equipment, such as CNC machine tools, plastic machines, presses, etc. Its main function is to guide the moving parts to move in a straight line, thereby ensuring the machining accuracy and stability of the equipment. At the same time, ball screws can also be used to transmit torque and thrust, such as driving hydraulic cylinders or pneumatic cylinders and other actuators.
